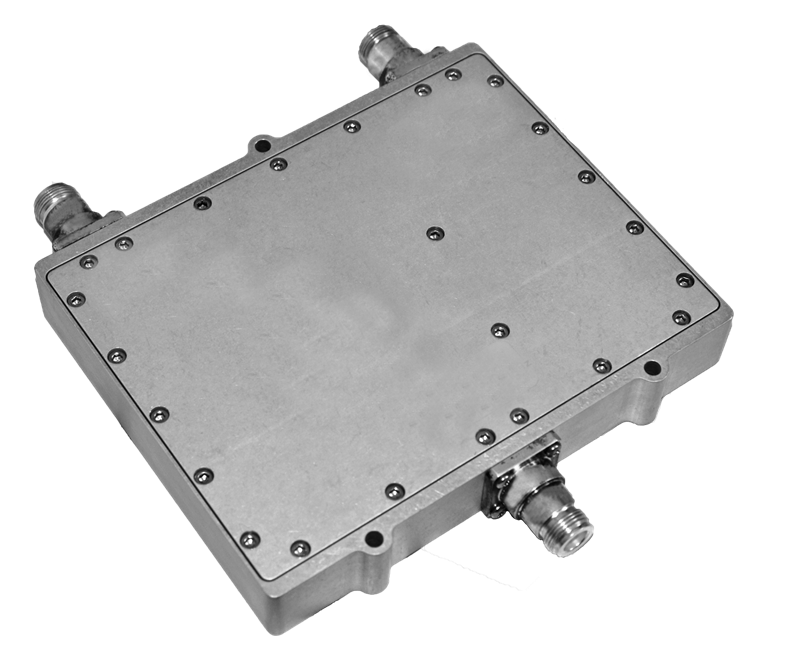

DI-A03
Diplexer, Low PIM, DC-470 MHz, 830-970 MHz,
Product Specifications
| General Parameters: |
|---|
| Input Connectors: | DIN, 4.3-10, N |
|---|
| Low Band: | DIN, 4.3-10, N |
|---|
| High Band: | DIN, 4.3-10, N |
|---|
| VSWR (max): | 1.35 |
|---|
| Isolation (db min): | 45 |
|---|
| PIM (dBc, max): | -155 |
|---|
| Low Band: |
|---|
| Start Frequency (MHz) 1: | 0 |
|---|
| Stop Frequency (MHz) 1: | 470 |
|---|
| Insertion Loss (db max) 1: | .3 |
|---|
| Power (W avg) 1: | 150 |
|---|
| High Band: |
|---|
| Start Frequency (MHz) 2: | 830 |
|---|
| Stop Frequency (MHz) 2: | 970 |
|---|
| Insertion Loss (db max) 2: | 0.75 |
|---|
| Power (W avg) 2: | 100 |
|---|
