DC Blocks for General Applications

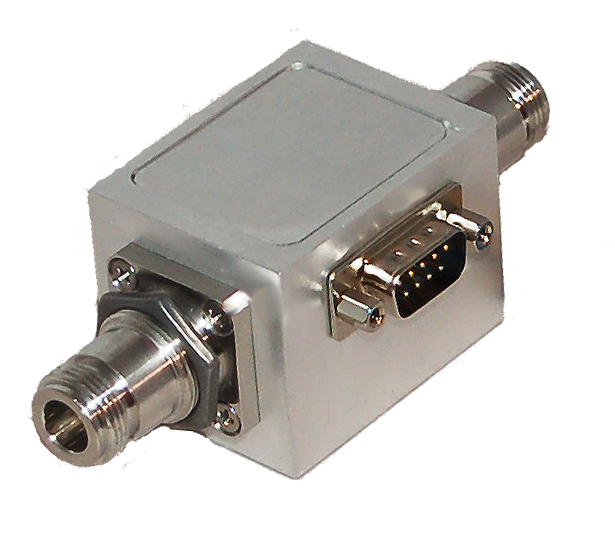

DC-A28

Datasheet

The Model DC-A28 is an RF/DC Bias/MonitorTee operating in the 512-746 MHz range with Type N conenctors and a 9 PIM DC/ data input connector

Product Specifications

General Parameters:
Type: Monitor Tee
Connectors: N
Input Connectors: N and 9 pin
Output Connectors: N
Start Frequency (MHz): 512
Stop Frequency (MHz): 746
Power (avg W): 50 Watts
VSWR Input (max): 1.20
