DC Blocks for General Applications

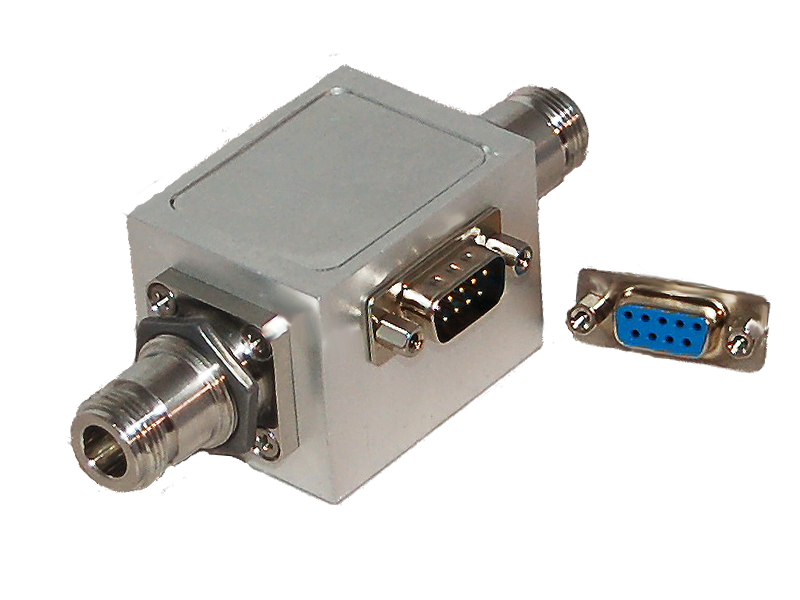

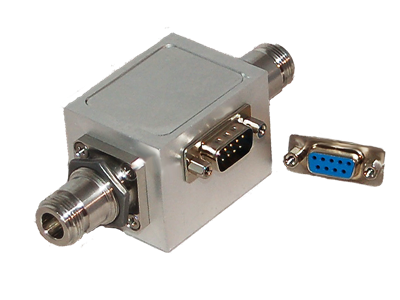

DC-A23

Datasheet

The Model DC-A23 Monitor Tee blocks RF on the main line and couples DC to a third port, for biasing or decoupling DC current.


Product Specifications

General Parameters:
Type: VHF/UHF Monitor/Bias Tee
Connectors: N
Input Connectors: N
Output Connectors: N
Start Frequency (MHz): 88
Stop Frequency (MHz): 470
Insertion Loss (db, max): 0.3dB
Power (avg W): 50Watts, 50 VDC
