Couplers for General Applications

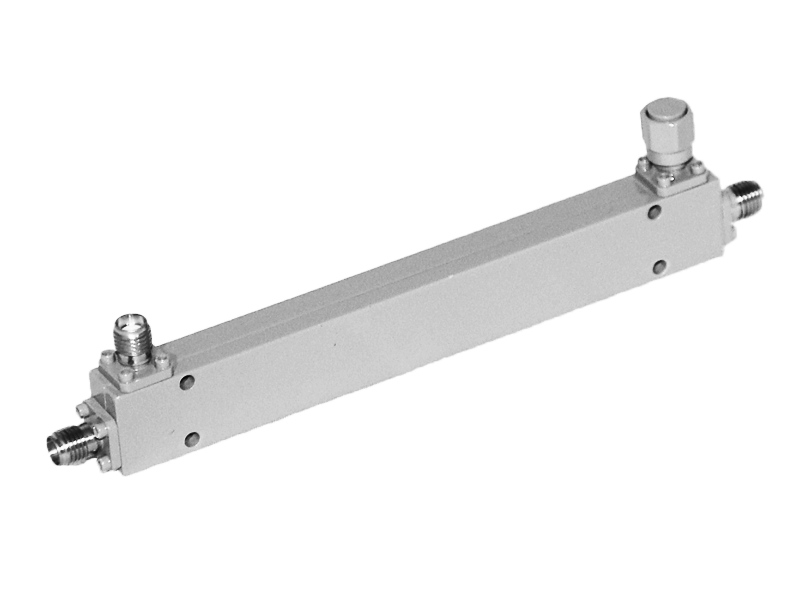

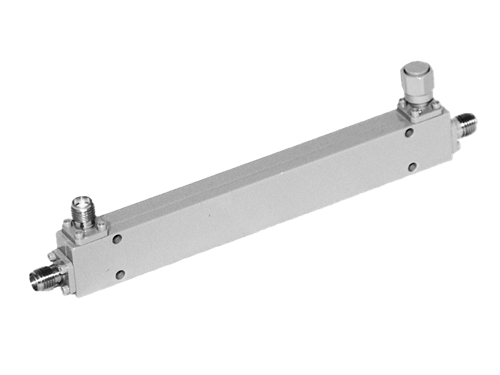

C1-B78

Product Specifications

General Parameters:
Coupling (dB): 20
Coupling Tolerance (± dB): 1.0
Flatness (± dB): 0.75
Main Connectors: SMA
Coupled Port: SMA
Start Frequency (MHz): 500
Stop Frequency (MHz): 2000
Mainline Loss (dB max.)
(Includes Coupling Loss):
0.4
Directivity (db): 23
VSWR (max.): 1.2
Power (W avg.): 50
