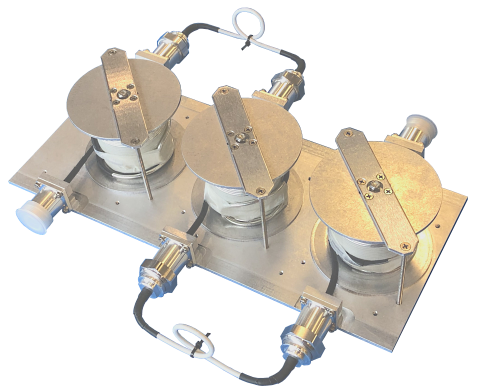

The AT-A17 low PIM cable Attenuator/Termination operates over the 150-6000MHz band with a minimum attenuation or Return Loss of 25dB at 150 MHz and higher frequencies. It can handle a minimum of 1kW CW at VHF and 200 Watts CW at 1GHz. The unit is configured with three cable loads that can be used independently, for different attenuation values. Attenuation values follow the linear changes of frequency verses loss of a long length of cable.
The unit is ideal for low PIM test set use at VHF/UHF to higher RF frequencies.
