Terminations for Wireless Applications

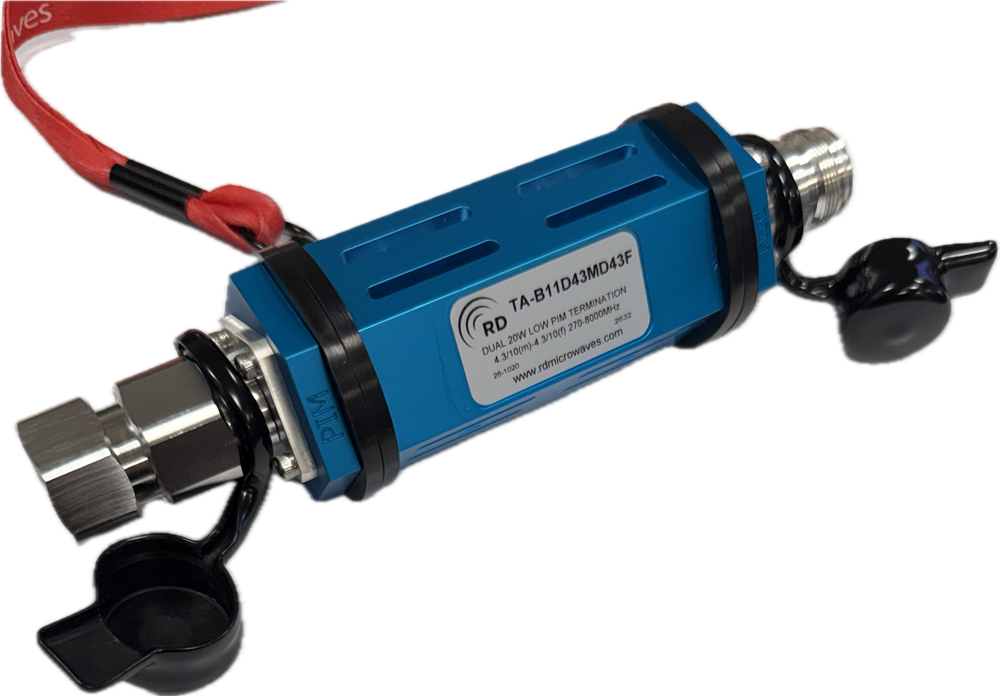

TA-B11X

The Model TA-B11X 20 Watt low PIM termination is supplied with both male and female connectors with either 4.3-10 , TypeN, or 7-16DIN connectors ( In any combination) . The purpose is to reduce the need for adapters when making DAS system PIM measurements in the field where various cominations of connectors may be used in the same system.

Product Specifications

General Parameters:
Description: 20 Watt PIM load
Connectors: 4.3-10, N, 7-`16DIN
Start Frequency (MHz): 370
Stop Frequency (MHz): 6000
Power (W avg.): 20 WATT
Return Loss (dB typ): 20
PIM (dBc, max): 165
