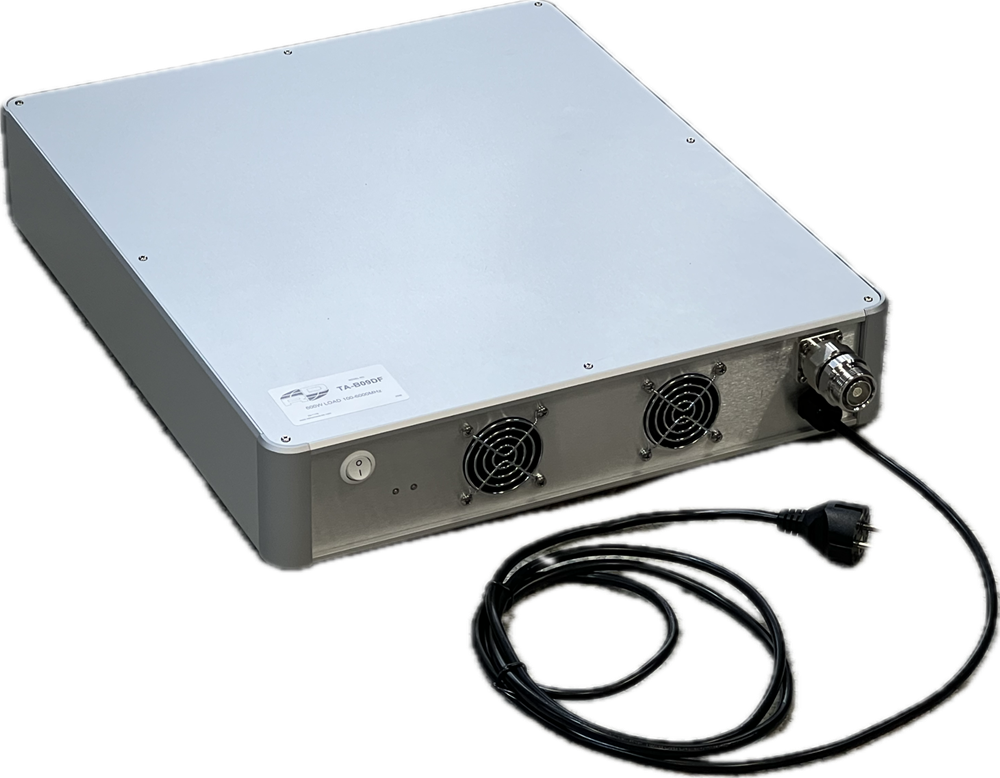

The load consists of a long length of low PIM cable suiteable for high power and broadband frequency performance 100Mz-6GHz with excellent Return Loss typically 20 dB or better. It is housed in a sheet metal cabinet suitable for lab use, with two cooling fans on the front panel with exhaust in the rear.The fans can be turned on /off with a front panel toggle switch, to regulate temperatures at various power levels as needed.
An optional coupler can be provide to convert the load into a High Power Low PIM attenuator.Tne unit is supplied with a Type 7-16DIN female connector with 4.3-10 or other types available.
