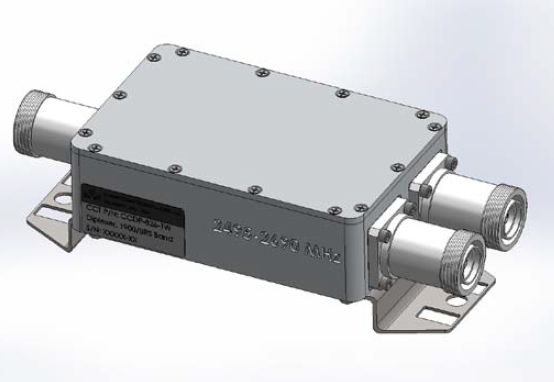

DI-A49D
Diplexer, Low PIM, 1850-2000 MHz, 2495-2690 MHz
DI-A49D is a low loss, low PIM, high isolation combiner of PCS and BRS bands. Suitable for outdoor applications this diplexer comes with long neck 7/16 DIN connectors.
Product Specifications
| General Parameters: |
|---|
| Input Connectors: | DIN |
|---|
| Low Band: | DIN |
|---|
| High Band: | DIN |
|---|
| VSWR (max): | 1.14 |
|---|
| Isolation (db min): | 35 |
|---|
| PIM (dBc, max): | -155 |
|---|
| Low Band: |
|---|
| Start Frequency (MHz) 1: | 1850 |
|---|
| Stop Frequency (MHz) 1: | 2000 |
|---|
| Insertion Loss (db max) 1: | 0.3 |
|---|
| Power (W avg) 1: | 200 |
|---|
| High Band: |
|---|
| Start Frequency (MHz) 2: | 2495 |
|---|
| Stop Frequency (MHz) 2: | 2690 |
|---|
| Insertion Loss (db max) 2: | 0.3 |
|---|
| Power (W avg) 2: | 200 |
|---|
