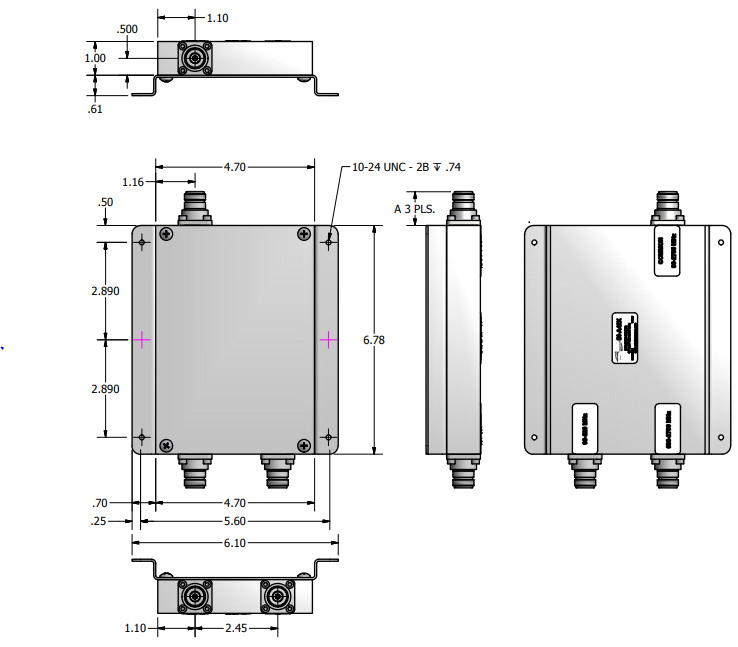

DI-A42
Diplexer, Low PIM, 80-520 MHz, 698-2700 MHz,
Product Specifications
| General Parameters: |
|---|
| Input Connectors: | DIN, 4.3-10, N |
|---|
| Low Band: | DIN, 4.3-10, N |
|---|
| High Band: | DIN, 4.3-10, N |
|---|
| VSWR (max): | 1.35 |
|---|
| Isolation (db min): | 50 |
|---|
| PIM (dBc, max): | -155 |
|---|
| Low Band: |
|---|
| Start Frequency (MHz) 1: | 80 |
|---|
| Stop Frequency (MHz) 1: | 520 |
|---|
| Insertion Loss (db max) 1: | 0.35 |
|---|
| Power (W avg) 1: | 50 |
|---|
| High Band: |
|---|
| Start Frequency (MHz) 2: | 698 |
|---|
| Stop Frequency (MHz) 2: | 2700 |
|---|
| Insertion Loss (db max) 2: | 0.5 |
|---|
| Power (W avg) 2: | 120 |
|---|
