Dividers-Splitters for Wireless Applications

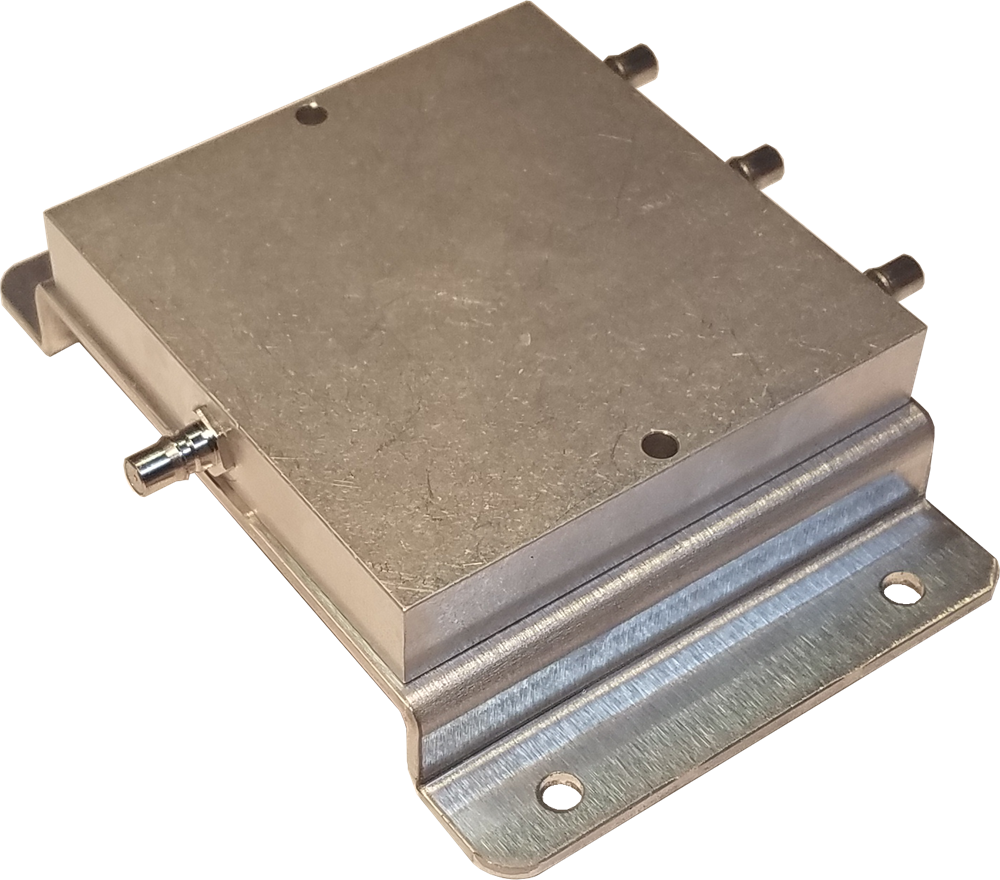

D3-A24Q

The D3-A24Q is a three way low power isolated Power Divider  or Combiner with QMA connectors covering 698-2700MHz.

The isolation is 17-20 dB minimum , insertion loss low at 0.5dB typical and VSWR of 1.3 Max as a Combiner and less than 1.5 at the common port as a Divider

Product Specifications

General Parameters:
Configuration: 3 WAY DIVIDER/COMBINER
Type: WILKINSON LOW POWER
Input Connectors: QMA
Output Connectors: QMA
Start Frequency (MHz): 698
Stop Frequency (MHz): 2700
Split loss (db): 4.8
Dissapative Loss (dB max): 0.7
VSWR (max): 1.3
Power (W avg): 30 DIVIDER
