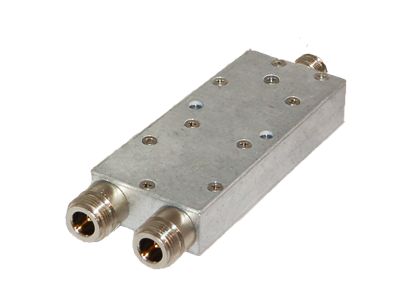

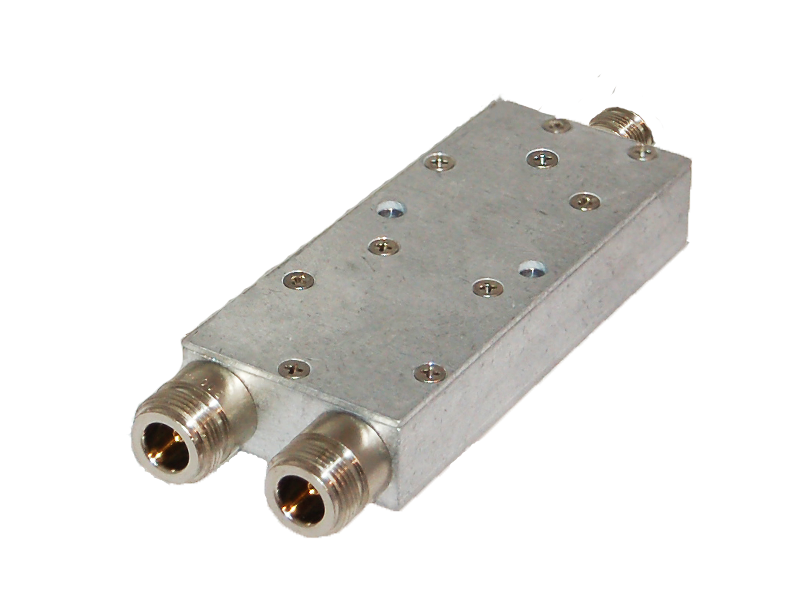

D2-A81X
The 380-2900 MHz frequency range for this 2 way Power Divider makes it suitable for public safety applications
Low loss suspended conductor construction for this stripline RF two way divder provides very low insertion loss with high isolation and broadband frequency performance.
Product Specifications
| General Parameters: |
|---|
| Configuration: | 2-Way |
|---|
| Type: | Wilkinson |
|---|
| Start Frequency (MHz): | 380 |
|---|
| Stop Frequency (MHz): | 2900 |
|---|
| Split loss (db): | 3dB |
|---|
| VSWR (max): | 1.35 |
|---|
| Power (W avg): | 1750mW |
|---|
