D2-A01

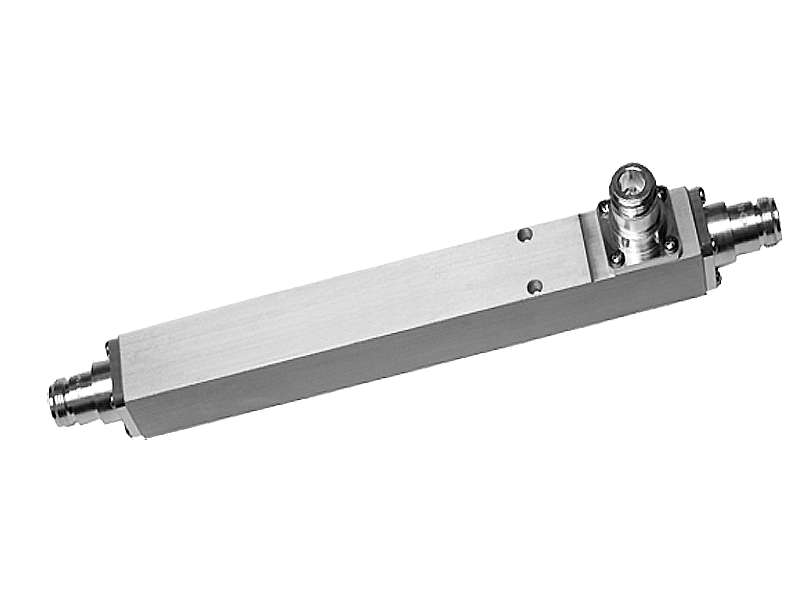

2-Way Power Divider, Low PIM 380-2500 MHz, Reactive Splitter
This Reactive splitter-Power Divider is typically used connect different segments of up and down ling paths in DAS indoor systems. The input port is well matched for low loss on the high power input side, with very low PIM.
Product Specifications
| General Parameters: |
|---|
| Configuration: | 2 Way |
|---|
| Type: | Reactive |
|---|
| Input Connectors: | DIN, 4.3-10 |
|---|
| Output Connectors: | DIN, 4.3-10 |
|---|
| Start Frequency (MHz): | 380 |
|---|
| Stop Frequency (MHz): | 2500 |
|---|
| Split loss (db): | 3 |
|---|
| Dissapative Loss (dB max): | 0.15 |
|---|
| VSWR (max): | 1.25 |
|---|
| Power (W avg): | 500 |
|---|
| PIM (dBc, max, 2 x +43dBm): | -160 |
|---|
