OSL Calibration Kits

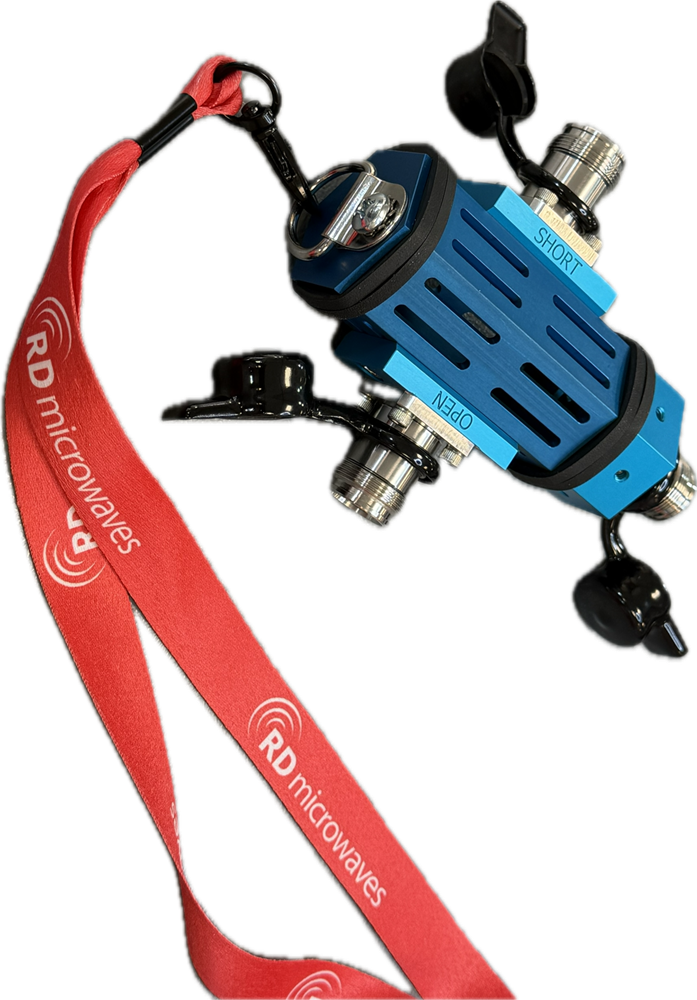

CK-A11NM

The Model CK-A11N OSL contains  phase matched RF Short and Open components, in addition to a DC-6 GHz 2 Watt resistive rf load  in a single convenient package, with Type N male connectors. A lanyard is also supplied with the unit, for hands-free convenience in tight spaces or ladder use.  The unit is also available with female connectors and 4.3-10 or 7-16 DIN connectors

Product Specifications

General Parameters:
Frequency: DC-6000MHz
DC Termination Power: 2 WATTS
Open -Short Phase: +/- 4 DEG TYPICAL
Open - Short Delay: 230 pS TYPICAL
DC Termination VSWR: 1.05 MAX
Connectors: TYPE N MALE
