OSL Calibration Kits

CK-A11D43F

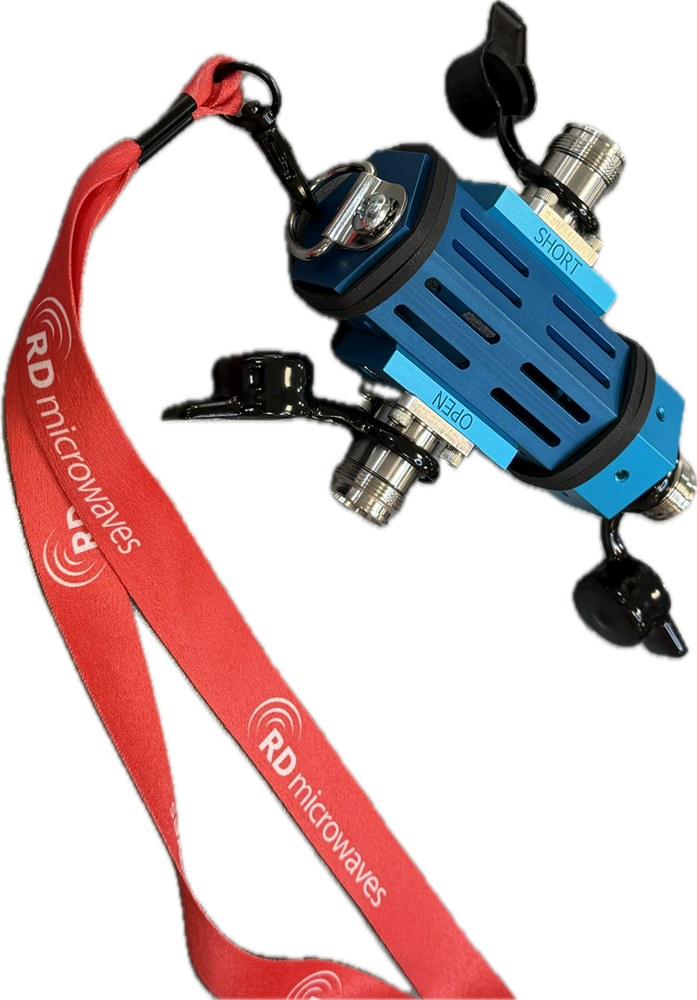

The Model CK-A11D43 OSL contains phase matched RF Short and Open components, in addition to a DC-6 GHz 2 Watt resistive rf load in a single convenient package, with 4.3-10 female connectors. A lanyard is also supplied with the unit, for hands-free convenience in tight spaces or ladder use.  The unit is also available with male connectors and N or 7-16 DIN connectors

Product Specifications

General Parameters:
Frequency: DC-6000MHz
DC Termination Power: 2 WATTS
Open -Short Phase: +/- 7 DEG TYPICAL
Open - Short Delay: 218 pS TYPICAL
DC Termination VSWR: 1.2 MAX
Connectors: 4.3-10 FEMALE
