Attenuators for Wireless Applications

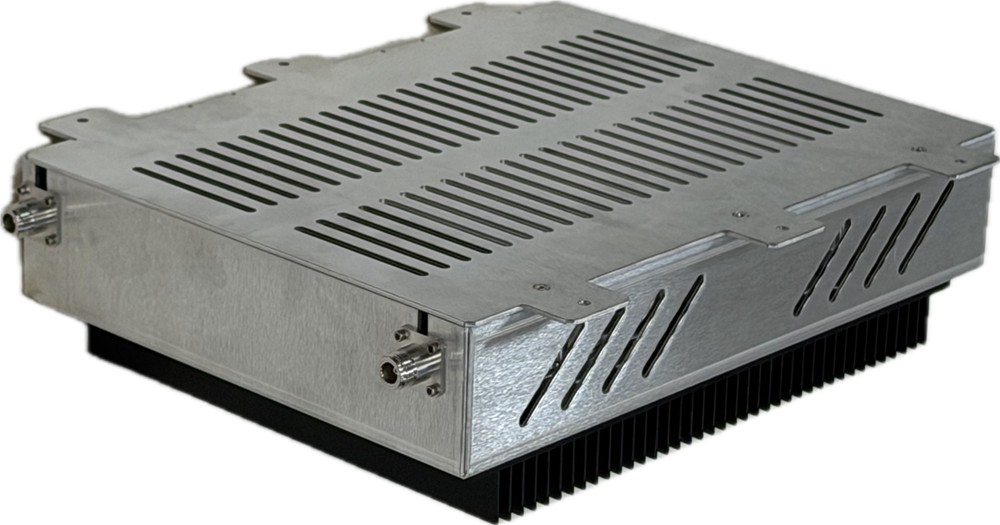

AT-A97-XX

The AT-A97-XX low PIM high power attenuator operates over the full band 400-7125MHz handling 200 Watts CW power. Attenuation values of only 3dB or 6dB are available in this convection cooled package, making the attenuator ideal for high power low attenuation applications where exceptional low PIM performance of 160dBc minimum is essential.

Product Specifications

General Parameters:
Type: SINGLE CHANNEL
Power (avg W): 200
Start Frequency (MHz): 400
Stop Frequency (MHz): 7125
Attenuation (db): 3 OR 6
PIM (dBc, max): 160
Return Loss (dB): 15 TYPICAL
